Eliminating Volumetric Constraints in Large-Scale Hardware Validation
![]()
Standard reach-in cabinets quickly become operational bottlenecks when your quality control workflow requires the benchmarking of oversized machinery, sub-assemblies, complete electric vehicle (EV) battery packs, or high-volume product batches. Testing components individually fails to capture the true structural and electrical stress behavior of complete systems operating under field conditions.

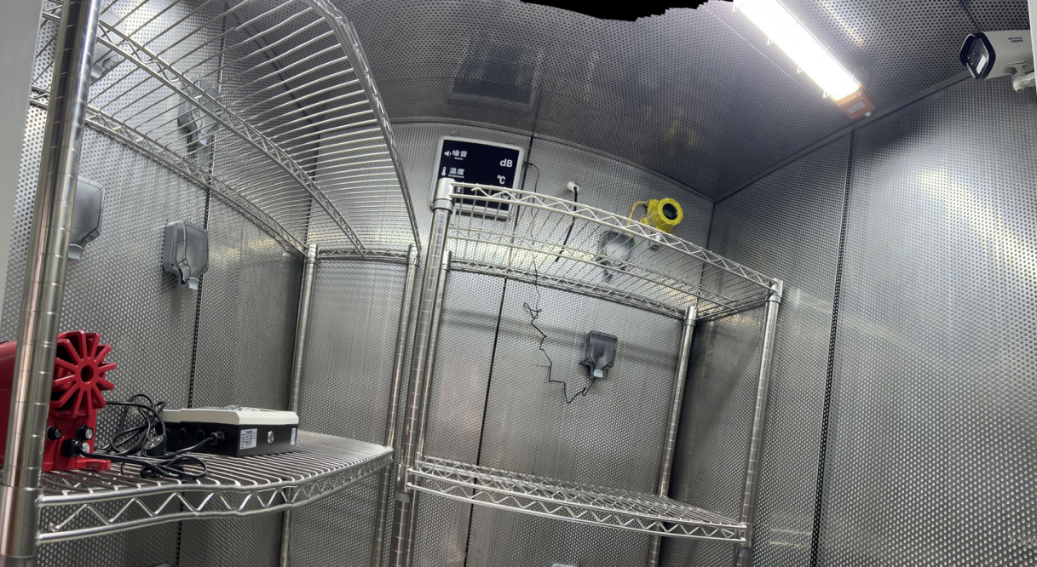

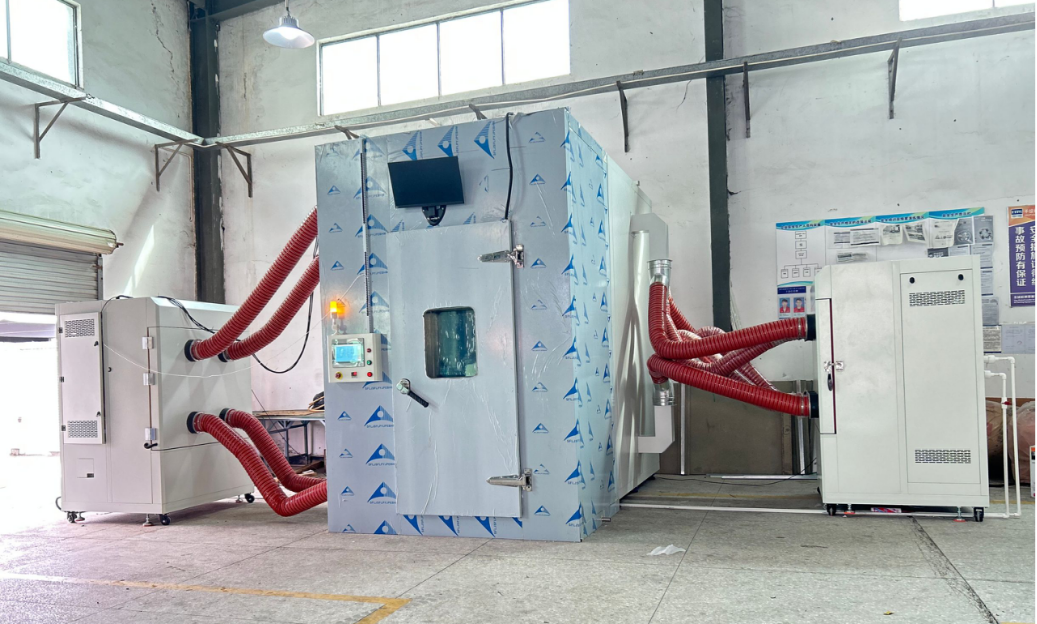

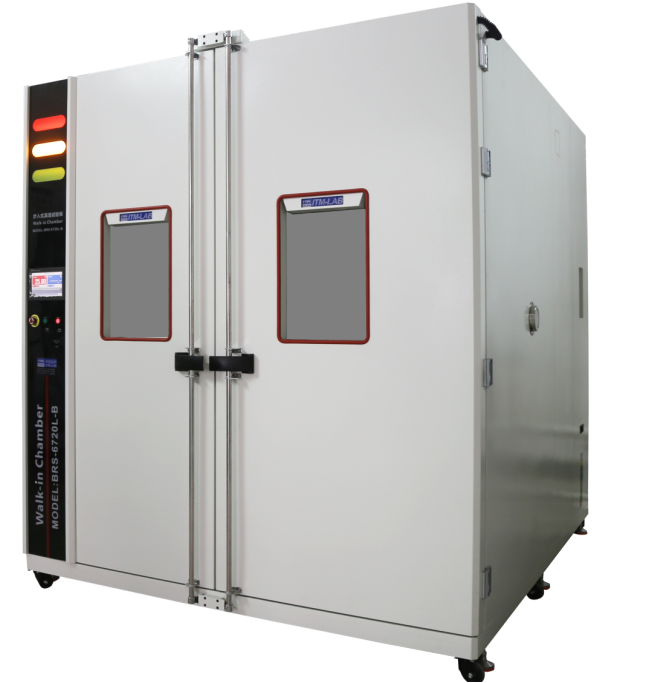

The ITM-LAB Walk-In Environmental Test Chambers (Modular Climate Rooms) solve these space limitations. Fabricated using high-density interlocking polyurethane panels or solid full-welded structural frames, these rooms create a highly controlled, stable microclimate over massive spaces. This allows testing teams to run accelerated thermal aging, damp heat cycling, and severe environmental stress profiles on full-scale production units, helping you catch latent design flaws, joint fatigue, and sensor drift before field deployment.
![]()
Applications:
This test chamber is widely used for testing instruments, electrical products, and equipment in sectors such as:
-
Aerospace and Aviation: To validate components in extreme altitudes and temperature ranges.
-
Electronics and Electrical Appliances: For ensuring product reliability and quality in challenging environments.
-
Telecommunications and Information Technology: To simulate and test devices' performance under environmental stress.
Fully Compliant with Global Protocols
| Test Standard |
Core Test Method |
Technical Parameter & Requirement |
| GB/T 2423.1 / .2 |
Low & High Temp Test |
Range: -70°C to +150°C. Fluctuation ≤±0.5°C. Built for long-term extreme thermal soak and storage profiling. |
| GB/T 2423.3 / .4 |
Constant & Alternating Damp Heat |
Humidity Span: 30% RH to 98% RH. Accurately simulates seasonal atmospheric variations and condensation stress. |
| IEC 60068-2-30 |
Climate Cycle Test |
Multi-segment temperature and relative humidity synchronization for international electronics certification. |
| MIL-STD-810 |
Military Environmental Engineering |
Severe climate stress testing equipped with automated anti-condensation heating manifolds around structural seals. |
| ASTM D2247 / JIS |
High Humidity Exposure Standards |
Tailored for international export inspections, industrial coatings degradation, and structural corrosion auditing. |
![]()
Frequently Asked Questions
Q1: Can the internal dimensions and parameters of the walk-in test room be customized?
A: Yes. We do not restrict your testing setups to pre-configured catalog sizes. Every unit is custom-engineered based on your specific test specimen footprints, weight metrics, temperature profiles, and available shop-floor blueprints. We adapt the inner volume, door height, cable ports, and floor reinforcement to your exact facility layout.
Q2: What are the standard and extended temperature and humidity ranges available?
A: Our baseline configuration delivers a stable operational envelope from -40°C to +150°C with controlled relative humidity from 30% RH to 98% RH. For specialized applications demanding deeper low-temperature performance, such as aerospace component validation, we offer cascaded mechanical refrigeration options that draw down to -70°C.
Q3: Is the flooring assembly stable enough to handle industrial AGVs and heavy machinery?
A: Yes. To support heavy rolling loads without structural deflection, the floor features an engineered sub-frame lined with thick, anti-slip SUS304 stainless steel plate. The standard configuration easily supports a uniform static load of 600 kg/m². For concentrated wheel loads or drive-in heavy vehicles, the floor structure can be up-armored during the engineering design phase.
Q4: Does the control system support unattended, long-cycle automated profile runs?
A: Yes. The chamber relies on an industrial programmable PLC architecture that
lets operators pre-set multi-segment, cyclical testing profiles. The control circuit includes built-in safety interlocks, independent specimen over-temperature cut-offs, phase-reversal protection, and automated fault alerts. This allows the chamber to run continuously 24/7 without requiring active manual oversight.
Design Your Walk-In Testing Blueprint Today
Don't let small testing cabinets delay your product launch or qualification schedules. Partner with ITM-LAB's engineering team to secure custom structural floorplans, complete refrigeration piping diagrams, and a transparent commercial quote within 24 hours.
![]()
