Designed for various capacitive and infrared touch screen modules ( mobile phones, tablets, e-books, electronic dictionaries, etc.) and is capable of conducting click and scratch tests.For precision testing, jitter testing, linearity testing, sensitivity testing, long-duration scratch testing, and long-duration click testing of capacitive screens.
Gantry Moving Design: Sample remains stationary, gantry moves for testing, avoiding sample displacement and ensuring stable and accurate test results, suitable for high-precision touch performance detection.
Dual Sample Testing: Supports 2 test samples, which can be measured individually or in turn, effectively improving testing efficiency and adapting to batch production QC needs.
Ultra-High Precision: ±0.001mm positioning accuracy and ±0.01mm X-Y axis repeatable positioning accuracy, ensuring precise touch point testing and meeting strict quality control standards.
Flexible Travel Range: X/Y axis travel range is customizable, adapting to different touch screen sizes and testing scenarios, with strong versatility.
Interchangeable Probes: Φ3~Φ15mm interchangeable probes, matching different touch screen testing scenarios (such as different touch point sizes and sensitivity requirements).
Programmable Data Acquisition: 100kHz, 200kHz, 400kHz programmable frequency, enabling accurate data collection and analysis of touch performance parameters.
Multiple Communication Protocols: Supports I2C bus, serial port, USB (customer to provide specific protocol), compatible with different touch screen communication requirements.
Precise Power Detection: 0~500mA current detection range, ±1mW power detection accuracy, ensuring comprehensive test coverage of touch screen power consumption and performance.
|
Test Standard
|
Test Method
|
Key Technical Requirements
|
|---|---|---|
|
IEC 61000-4-2
|
Electrostatic discharge (ESD) test for touch screens; simulate electrostatic interference in daily use, test touch screen anti-interference ability and performance stability.
|
Positioning accuracy ≤±0.001mm; power detection accuracy ±1mW; data acquisition frequency ≥100kHz
|
|
GB/T 2423.10-2019
|
Touch screen mechanical durability test; repeated touch and press test, verify touch sensitivity, response speed and service life after long-term use.
|
X-Y axis repeatable positioning accuracy ±0.01mm; Z-axis travel speed 0~200mm/sec; test cycle up to 999,999 times
|
|
ISO 9241-410
|
Touch screen usability and performance test; detect touch accuracy, response time and operation stability under different test conditions.
|
Touch positioning error ≤±0.001mm; communication protocol compatible with I2C/USB; power supply accuracy ±0.02V
|
|
GB/T 15472-2019
|
Touch screen electromagnetic compatibility (EMC) test; ensure touch performance is not affected by electromagnetic interference in industrial and daily environments.
|
Power consumption current detection range 0~500mA; probe interchangeable (Φ3~Φ15mm); stable operation under AC220V power supply
|
|
Item
|
Details
|
|---|---|
|
Model
|

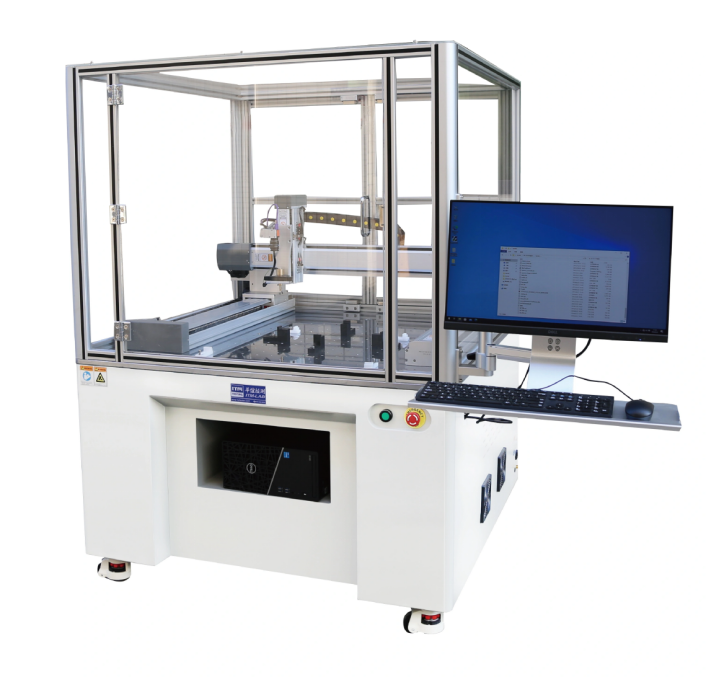

RS-5610V (sample does not move, gantry moving all-in-one design)
|
|
Test Sample
|
2 pcs (can be measured individually, or two screens in turn)
|
|
X-axis travel range
|
0~300mm or according to customer's requirement
|
|
Y-axis travel range
|
0~250mm or according to customer's requirement
|
|
Z-axis travel range
|
0~50mm
|
|
Positioning accuracy control
|
±0.001mm (±0.00004")
|
|
X-Y axis repeatable positioning accuracy
|
±0.01mm (±0.0004")
|
|
X-Y axis travel speed
|
0~500mm/sec
|
|
Z-axis travel speed
|
0~200mm/sec
|
|
Z-axis repeatable positioning accuracy
|
±0.02mm
|
|
Integral weight load
|
30g, 150g, 250g
|
|
Probe Diameter
|
∅3~∅15mm interchangeable
|
|
Analog & Digital Supply Voltage Range
|
DC1.2V~5V
|
|
Analog & Digital Supply Voltage Accuracy
|
±0.02V
|
|
Power consumption current detection range
|
0~500mA
|
|
Power Consumption Detection Accuracy
|
±1mW
|
|
Data Acquisition Frequency
|
100kHz, 200kHz, 400kHz programmable
|
|
Communication Protocol
|
I2C bus, serial port, USB (customer needs to provide communication protocol)
|
|
Host Volume
|
W950*D1050*H1520mm
|
|
Weight
|
Approx. 350kg
|
|
Power supply
|
1∮AC220V 5A
|
- 3C electronics: Smartphones, tablets, smart watches
- Automotive industry: Car touch screens, in-vehicle touch controllers
- Industrial field: Industrial touch panels, touch-enabled controllers
- Commercial equipment: POS machines, touch-based self-service terminals
- R&D and QC laboratories: Touch screen performance verification and quality inspection
- Professional R&D Strength: ITM-LAB has 27-year industry experience and a 40% R&D team, ensuring high-quality and reliable testing equipment that meets industry standards.
- Ultra-High Precision Performance: Gantry moving design with ±0.001mm positioning accuracy, meeting the strict quality control requirements of high-end touch screen products.
- Efficient Batch Testing: Dual sample testing design greatly improves testing efficiency, suitable for mass production lines and QC laboratories.
- Strong Customization Capability: Customizable X/Y axis travel range and flexible configuration, adapting to diverse touch screen sizes and testing needs.
- Cost-Effective & Global Support: Factory-direct supply with competitive B2B pricing, and global after-sales support to solve your usage worries.
Q1: What is the core design feature of the RS-5610V?
A1: It adopts a gantry moving all-in-one design, where the sample remains stationary and the gantry moves for testing, ensuring stable and accurate test results without sample displacement.
Q2: How many samples can it test at the same time?
A2: It supports 2 samples, which can be tested individually or sequentially, effectively improving batch testing efficiency.
Q3: What is the positioning accuracy of this machine?
A3: The positioning accuracy is ±0.001mm, and the X-Y axis repeatable positioning accuracy is ±0.01mm, meeting high-precision touch testing requirements.
Q4: Can the travel range be customized?
A4: Yes, the X/Y axis travel range can be customized according to customer requirements, adapting to different touch screen sizes.
Q5: What communication protocols does it support?
A5: It supports I2C bus, serial port and USB protocols; customers need to provide specific protocol requirements for matching.
