High and Low Temp. Auto Torque Tester RS-6300G-HLT
Product Overview

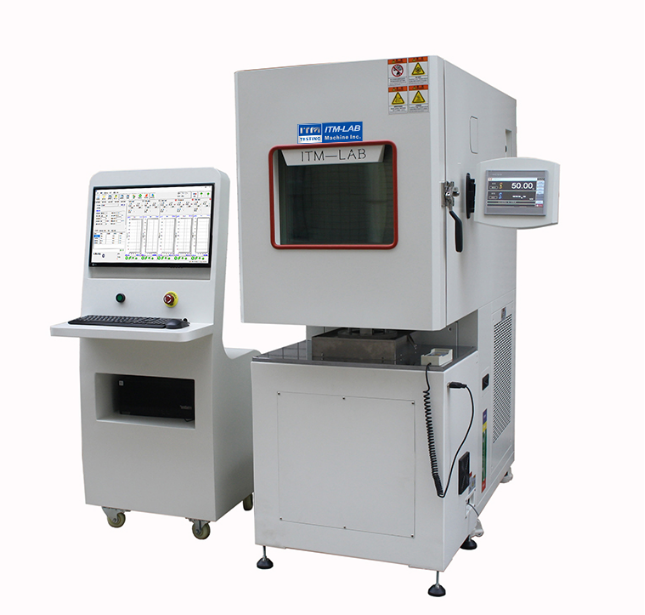

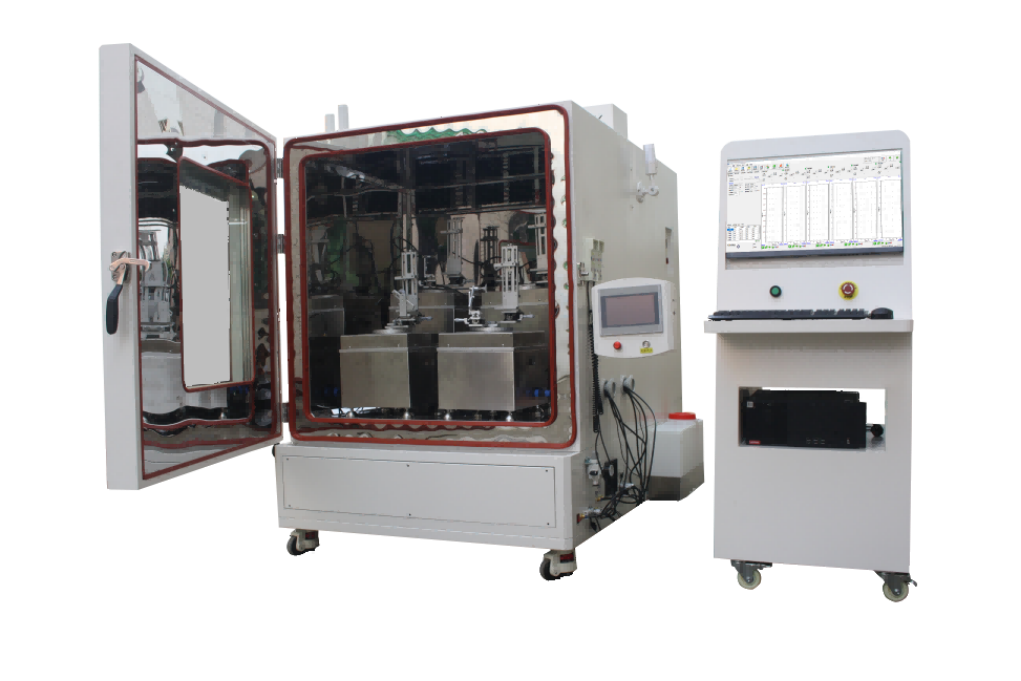

The RS-6300G-HLT is an integrated high & low temperature automatic torque testing machine designed to evaluate the torsional performance, fatigue life, and damping stability of foldable devices, flexible screens, and precision components.
It simulates real high/low temperature environments to test torque changes, life attenuation, and structural reliability, providing critical data for R&D and quality control of foldable smartphones, flexible modules, and electronic assemblies.
Key Features
-
Integrated high & low temperature chamber + automatic torque test system
-
For foldable screen, hinge, UTG, PI, FPC, and ammonium chain mechanism
-
Real-time torque detection & life cycle recording
-
Precise temperature control for stable environmental simulation
-
Programmable cycle, angle, speed, and torque limit
-
Automatic stop & data storage for unattended testing
-
High precision, stable structure, suitable for lab & production QC
Test Standards (with Test Method & Parameters)
| Test Standard | Test Method | Key Parameters & Requirements |
|---|---|---|
| GB/T 39223-2020 Flexible Display Mechanical Durability | Torsion & folding life test under temperature cycles | Temp range: -20℃~60℃; Cycle times: ≥200,000 times; Torque accuracy ≤±1% |
| GB/T 2423.1 / 2423.2 High & Low Temp Test | Low temp & high temp endurance torsion test | Temp uniformity ≤±2℃; Precision temperature control |
| IEC 60068-2-1 / 2 Environmental Tests | Temperature-controlled torsion & fatigue test | Meet international certification data |
| GB/T 2611-2007 General Testing Machine Requirements | Torque calibration, safety, and durability | Torque resolution ≤0.01N·mm; Angle resolution ≤0.01° |
Typical Applications
-
Foldable screen smartphones, tablets, notebooks
-
Flexible OLED, PI flexible screen, UTG ultra-thin glass
-
Hinge / ammonium chain mechanism & shaft assembly
-
FPC flexible circuit board, miniature connectors
-
Precision components requiring temperature & torsion test
https://www.itm-lab.com/contact.html
FAQ
Q1: What products does the RS-6300G-HLT test?
A1: Foldable screens, hinges, UTG, PI modules, FPC, ammonium chain mechanisms, and small precision components.
Q2: Does it test under high & low temperature?
A2: Yes. It integrates a temperature chamber to perform torsion and life tests under controlled heating or cooling conditions.
Q3: What data does it output?
A3: Real-time torque, angle, cycle times, torque attenuation curve, and test report.
Q4: Is it suitable for certification testing?
A4: Yes. It complies with GB/T 39223, IEC 60068, GB/T 2423, etc., for reliability and certification test.
Q5: Can it run automatically?
A5: Yes. It supports programmable cycles, automatic operation, and stop on completion.
