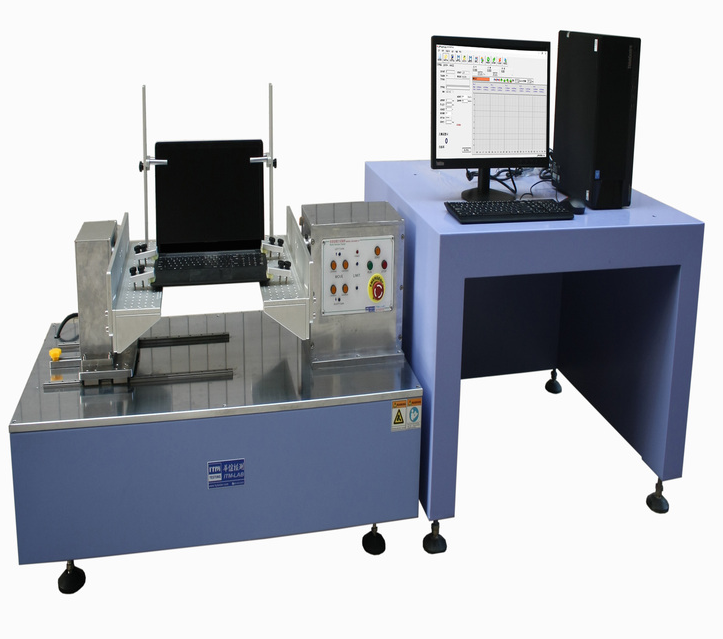

The Spindle Torque Endurance Testing Machine rs-6700(servo type) is designed for LCD MONITOR liquid crystal display, V liquid crystal TV, all-in-one computer, etc. After many times of forward tilt and backward swing test, whether the rotor shaft still has the holding force or the rotor shaft resistance becomes large and damages the plastic body.
| Test Standard | Test Method | Relevant Technical Requirements |
|---|---|---|
| GB/T 2611-2007 | General technical requirements for mechanical testing machines, regulate torque accuracy, structural stability and safety protection | Torque control stability within ±1%; qualified cyclic positioning accuracy |
| GB/T 39223 | Mechanical durability test method for flexible display and display shaft mechanism | Simulate repeated tilt and swing, evaluate holding force attenuation and structural damage |
| IEC 60068-2 | Environmental and mechanical endurance test for electronic display products | Support fixed angle, fixed speed and fixed cycle long-term aging test |
| Item | Details |
|---|---|
| Model | RS-6700 (Servo type) |
| Control mode | Touch Screen + PLC |
| Maximum test size | 32-inch LCD |
| Maximum torque | 150kgf.cm |
| Lifting and lowering of the test bench | 0~300mm electric |
| Test speed | 1~30 times/min |
| Test angle | 0~180° |
| Setting of test times | 1~999999 times can be set |
| Machine Size | W1130×D745×H1550mm |
| Weight | Approx. 200kg |
| Power supply | AC220V 50Hz 5A |
LCD monitor spindle holding force & swing endurance test
LCD TV forward tilt and backward swing life test
All-in-one computer shaft torque attenuation test
Other customized display products requiring spindle mechanical endurance inspection
Servo precision control: Servo drive ensures stable torque and speed output, repeatable and accurate test data for quality certification.
Display product targeted design: Optimized structure for up to 32-inch screen products, perfectly matching production line and laboratory test standards.
Humanized operation: Touch screen + PLC intelligent control, one-key parameter setting and automatic cycle operation.
Professional manufacturing strength: ITM-LAB decades of experience in electronic reliability testing equipment, providing one-stop test solution and after-sales support.
Cost-effective & low maintenance: Factory direct sales with stable quality, compact structure and durable parts, reducing later maintenance cost.
