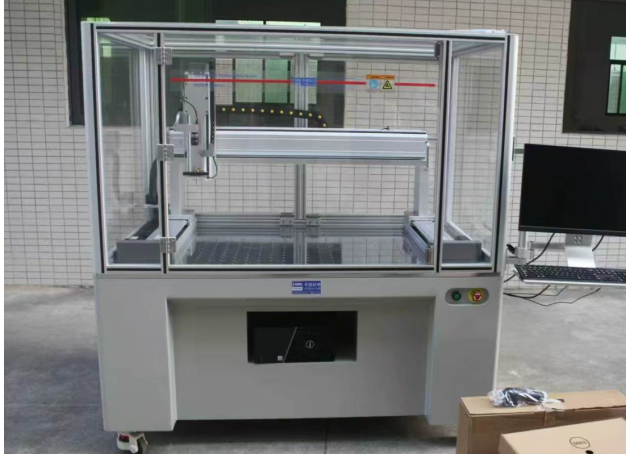

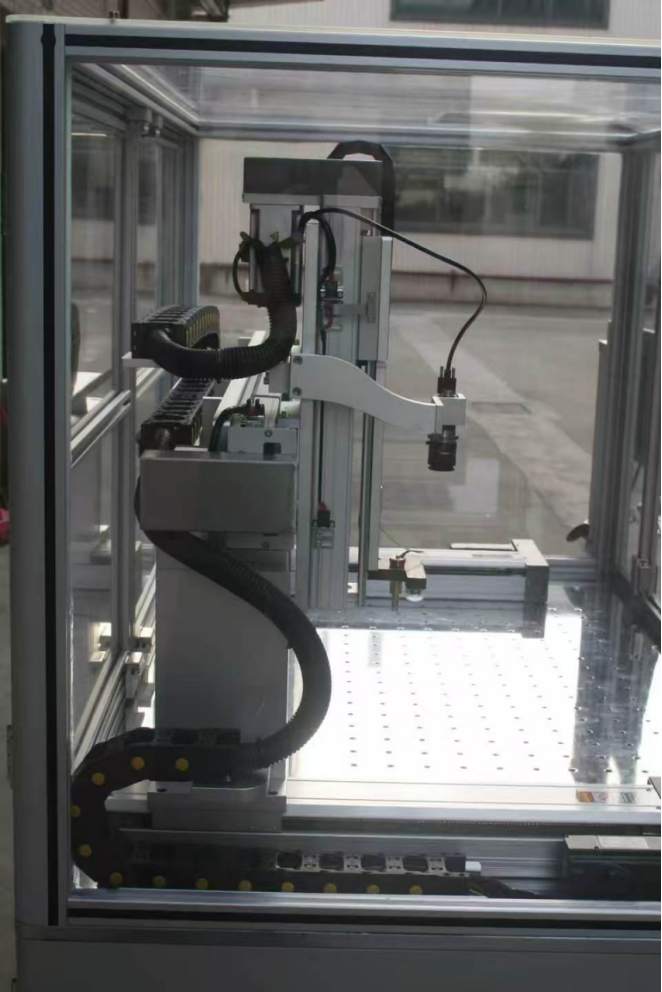

Designed for all kinds of capacitive touch screen module CTP, cell phone machine, tablet PC, e-book, electronic dictionary and other products touch screen to do click scratch test. It is suitable for capacitive screen precision test, jitter test, linearity test, sensitivity test, long time scratch test and long time click test.
| Model | RS-5016R |
| Test Sample | l pcs or 2pcs(can test individually or two screens in turn) |
| X-axis travel range | 0~200mm (can be customized according to customer's requirement) |
| Y-axis travel range | 0~300mm (can be customized according to customer's requirement) |
| Z-axis travel range | 0~50mm |
| Positioning accuracy control | ≤0.001mm |
| Repeatability | ≤0.01mm |
| X-Y axis travel speed | 0~500mm/sec |
| Z-axis travel speed | 0~200mm/sec |
| Z-axis Repeat Positioning Accuracy | ±0.02mm |
| Load weight | 30g,80g,150g,250g |
| Probe diameter | Φ3~Φ15mm |
| R-axis rotation speed | 1～5sec/360° |
| Maximum travel of separation axis A and B | 170mm or specified |
| Separation speed of A and B ends | 1~50mm/sec |
| Analog & digital supply voltage range | DC1.2~5V |
| Analog & digital supply voltage accuracy | ±0.02V |
| Power consumption current detection range | 0~500mA |
| Power consumption power supply detection accuracy | ±1mW |
| Data Acquisition Frequency | 100kHz, 200kHz, 400kHz programmable |
| Communication Protocol | I2C, Serial, USB |
| Host Volume | W1580 x D1100 x H1520mm |
| Weight | Approx. 650kg |
| Power supply | AC220V 50HZ 10A |
