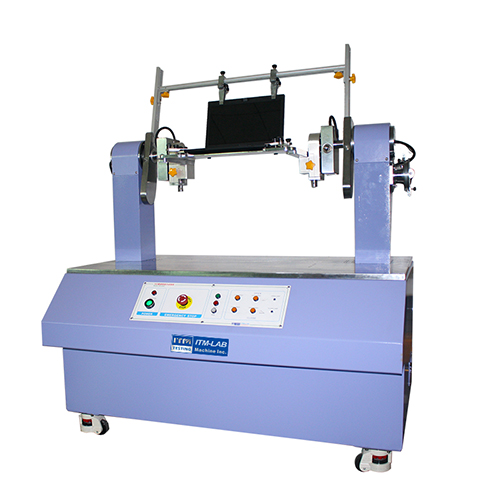

The RS-6300F Automatic Hinge Torque Tester provides accurate torque measurement, hinge durability testing, and torque attenuation analysis for laptops, tablets, foldable devices, and display assemblies. Advanced servo control and automated data collection ensure reliable torque-angle curve analysis and long-term performance evaluation.
The RS-6300F Automatic Hinge Torque Tester is designed for accurate torque measurement, torque decay analysis, and life cycle testing of laptop hinges, tablet hinges, foldable device hinges, display hinges, and other rotating components. Equipped with a high-precision AC servo motor and advanced control software, it automatically records torque-angle curves, evaluates hinge consistency, and helps manufacturers verify product durability throughout the development and production process.
The RS-6300F is widely used for:
The system supports multiple torque capacities to accommodate different product categories:
High-resolution sensing ensures accurate measurement of opening and closing torque throughout the entire test cycle.
The servo-controlled drive system performs programmable rotational testing from 180° to 360°, allowing engineers to simulate actual opening and closing movements while monitoring torque variations in real time.
Hinges gradually lose torque after repeated use. The RS-6300F automatically tracks torque attenuation over thousands of cycles, helping engineers evaluate long-term durability and identify potential design weaknesses before products enter mass production.
The software continuously captures torque and angular displacement data to generate detailed torque-angle curves.
These curves help engineers analyze:
The system can perform long-term repetitive opening and closing tests to simulate real-world product usage.
Typical durability evaluations include:
This allows manufacturers to verify hinge reliability before product launch.
The Windows-based control software provides:
Engineers can quickly compare test results and perform trend analysis across multiple samples.
| Item | Specification |
|---|---|
| Model | RS-6300F |
| Capacity | 5 N·m / 10 N·m / 20 N·m |
| Units | kgf·cm, kgf·mm, N·m, N·cm, N·mm |
| Accuracy | ±0.5% FS |
| Minimum Torque Resolution | 0.01 / 0.001 |
| Test Angle Range | 180° – 360° |
| Angle Resolution | 0.01° |
| Effective Test Width | 400 mm / 500 mm |
| Test Speed | Adjustable, up to 7200°/min |
| Drive System | AC Servo Motor |
| Power Supply | AC220V |
Hinges are among the most frequently used mechanical components in consumer electronics.
Insufficient torque may cause a screen to wobble during use, while excessive torque can create poor user experience or even accelerate structural damage.
Accurate hinge torque testing helps manufacturers:
For foldable devices and premium laptops, hinge torque consistency is often a critical quality control parameter.
The RS-6300F supports a wide range of hinge-related evaluations:
With over 28 years of experience in reliability testing equipment manufacturing, ITM-LAB provides testing solutions trusted by manufacturers, laboratories, universities, and quality control organizations worldwide.
Advantages include:
For comprehensive hinge and mechanical durability evaluation, you may also be interested in:
Q1. What products can be tested with the RS-6300F?
The machine is suitable for laptop hinges, tablet hinges, foldable device hinges, display hinges, automotive display mechanisms, and other rotational components.
Q2. Can the machine perform durability testing?
Yes. The RS-6300F supports long-term cyclic testing and torque decay analysis, making it suitable for hinge life cycle evaluation.
Q3. What data can be generated during testing?
The software automatically generates torque-angle curves, torque decay curves, test reports, and statistical analysis data for quality verification and R&D purposes.
Q4. Is fixture customization available?
Yes. ITM-LAB can provide customized fixtures based on your product dimensions and testing requirements.
