Servo Control Tensile Testing Machine RS-8000SA
Microcomputer-Controlled Universal Electronic Material Testing Machine Technical Specifications (Compression Testing)
Model: RS-8000SA
Equipment Purpose
This machine is designed for 3-point and 4-point bending tests on glass. With different fixtures, it is suitable for tensile, compression, bending, peeling, shear, tear, puncture, fatigue, and other tests on materials such as metal wire, metal foil, metal sheets, metal tape, rubber, plastic, foam, waterproof materials, cables, textiles, ropes, non-woven fabrics, etc. It serves as a powerful tool to help industries improve quality.
Typical Testing Applications
-
Glass 3-Point Bending Test
-
Glass 4-Point Bending Test
-
Glass Compressive Strength Test
-
Metal/Thin Sheet Tensile Test
-
Rubber/Plastic Tensile Test
-
Metal/Plastic Bending Test
-
Tape 900/1800 Peeling Strength Test
-
FPC Tensile Test
-
Beverage Packaging Compression/Puncture Force Test
-
Product Retention (Constant Force) Test
-
Low-Cycle Fatigue (Cycling) Test
-
Metal-Wood 3-Point Bending Test
-
Eco-Friendly Clamping Adhesion Strength Test
-
Composite Woven Packaging Strap Strength Test
Applications
-
✅Automotive Components
-
✅Electronics & Telecommunications
-
✅Metal & Surface Coatings
-
✅Glass & Ceramics
-
✅Plastics & Rubber Products
-
✅Composite Materials
-
✅Construction Materials
-
✅Adhesives & Sealants
-
✅Medical Devices
-
✅Food Packaging
-
✅Paper & Packaging Products
Key Features
High Precision
Equipped with a Panasonic AC servo motor from Japan, a high-precision, backlash-free ABBA ball screw transmission from Taiwan, and a TRANSCELL high-accuracy explosion-proof load cell from the USA. The machine achieves a force accuracy of ±0.25% and a displacement accuracy of 0.001mm.
High Intelligence
Features include automatic fracture detection, automatic return to the initial position, curve tracing, and unit conversion. The system supports three languages: Simplified Chinese, Traditional Chinese, and English. It offers multiple curve analysis options, including Load-Displacement, Load-Time, Displacement-Time, Stress-Strain, Strain-Time, and Stress-Time.
Professional Test Reports
Developed using Crystal Reports 10.0, the system automatically calculates strength, elastic modulus (E), RP0.2, ReL, ReH, elongation, and more. Report headers and content can be customized freely, and curves are generated automatically. Reports can be exported in various formats, including Excel, PDF, and HTML.
| Parameter | Specification |
|---|---|
| Capacity | 10kN (1000kgf) |
| Unit Conversion | N, kN, kgf, lbf |
| Resolution | 1/200,000 |
| Load Accuracy | ±0.5% F.S |
| Effective Measurement Range | 0.25% ~ 100% F.S |
| Effective Tensile Space | 600mm |
| Effective Measurement Width | 400mm |
| Testing Speed Range | 0.001 ~ 500mm/min |
| Fixture Installation | Mechanical limit |
| Crosshead Movement Control | Dual-speed automatic control (fast/slow) with manual jog control |
| Crosshead Return Function | Manual or automatic return, automatic return after fracture |
| Overload Protection | Automatic protection when exceeding 10% of maximum load |
| Main Unit Dimensions | W800 x D600 x H1972mm |
| Main Unit Weight | Approx. 235kg |
Control Software
TFT Module Test Application

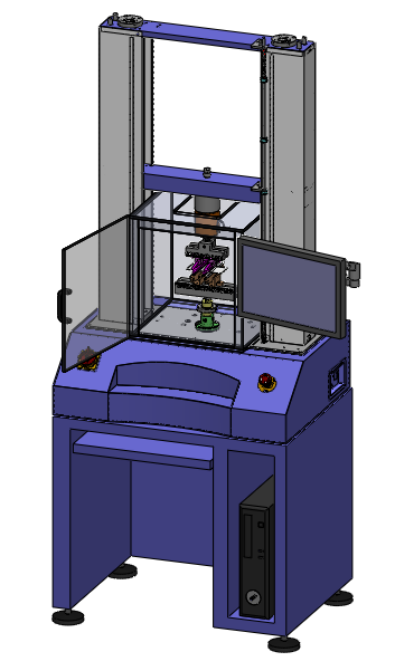

Tempered Glass 4-Point Bending Test Protective Shield:
| Feature | Description |
|---|---|
| Material | Made of imported transparent acrylic panels |
| Design | Fully enclosed design with a top opening (W160 x D200mm) for fixture adjustment and replacement |
| Front Door | Designed as a movable door with two hinges, magnetic closure, and a handle |
| Operation | Door remains closed during testing; opens for sample replacement and cleaning |
Back of the Machine
The monitor stand allows for adjustable movement of the display in the front-back, left-right, up-down directions, as well as tilt angle adjustment.
