High and low temperature battery explosion-proof test chamber ITM-DEP is designed for power batteries, electric cells, electronic products and other products, parts and components, a variety of materials for high temperature, low temperature test, the equipment can simulate temperature changes in the conditions of Bian on the product, parts and components, materials, such as slanting the quality inspection and reliability testing.

The Double-layer high and low temperature explosion-proof test chamber ITM-DEP-288L is designed for high and low temperature testing of batteries, batteries, electronic products and other products, parts and various materials. The equipment can simulate the quality inspection and reliability testing of products, parts and materials under the condition of temperature change

The testing battery sample is placed on a flat surface with a 15.8 earth 0.2mm (5/8 inch) diameter bar placed crosswise over the center of the specimen. A 9.1kg or 10kg weight is dropped onto the sample from a certain height (610mm or 1000mm or 1500mm). Cylindrical or square cells are subjected to the impact test with their longitudinal axis parallel to the plane and perpendicular to the longitudinal axis of the steel column. The longest axis of the square cell is perpendicular to the sub-steel column, and the most heavenly surface is perpendicular to the direction of impact, and each cell is subjected to only one impact test.

• Model: RS-8000A2
• Application: Designed for battery and battery module crush & puncture tests, simulating localized thermal runaway or internal short circuits.
• Real-time Data Collection: Monitors pressure, displacement, puncture force, surface temperature, and voltage curve.
• Customizable Testing: Adjustable compression and puncture speeds with various fixture options.
• Safety: Ensures operator safety and prevents damage to the testing environment during potential fire or explosion.
• Compliance: Meets global standards, including GB/T, UL, IEC, and UN38.3

• High Precision and Speed: Equipped with a Panasonic AC servo motor, precision ball screw, and linear guide system for high-speed, high-precision positioning.
• Real-time Data Collection: Continuously collects puncture force, travel distance, surface temperature, and voltage with no steps and high resolution.
• Remote Control and Data Acquisition: Supports high-speed Ethernet remote control and data collection, effective over distances of up to 100m.
• Comprehensive Safety Testing: Simulates puncture/extrusion forces to assess battery safety, optimizing products based on real-time data.
• Complies with Industry Standards: Meets the safety and testing requirements outlined in GB/T 31485-2015 for electric vehicle power batteries.

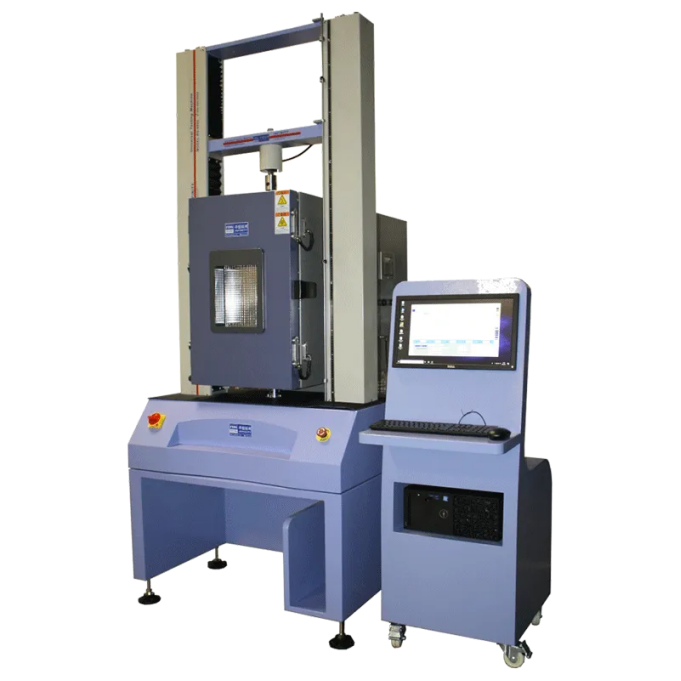

The High and low temperature battery extrusion & needle testing machine  RS-6006 GDW is designed for extrusion & acupuncture test of battery and battery module in high and low temperature environment. It has video monitoring function and can automatically save video and reproduce the test process.

Temperature Control Battery Short Circuit Tester RS-6003C-4 integrated a variety of battery short-circuit test standard requirements and design, according to the standard requirements of the short-circuit device must comply with the C resistance range ≤ 5mo, so as to obtain the maximum short-circuit current test requirements; In addition to the short-circuit device line design must be able to withstand the impact of high-current, so we chose to use the work of the sub-grade DC magnetic contactor and all-copper terminal and the C part of the copper plate current conduction, wide and thick copper board effectively improve the heat dissipation effect so that high-current short-circuit device safer, effectively reducing the loss of test equipment to ensure the accuracy of the test data. Wide and thick copper plate effectively improves the heat dissipation effect, making the high-current short-circuit device safer, effectively.

Test standard
GB/T31485, IEC, EN, UN38.3, UL2054, QC/T744-2006, QC/T743-2006 and other standards.

The High Temperature Aging Test Chamber is designed for high temperature aging test of electric core and module as well as electronic parts and various materials. The unique air duct design ensures higher temperature precision and uniformity. The circulating fan adopts frequency conversion control, low noise, and the size can accept customized.
